How to cluster or un-cluster sites on the map

When a map in Sloc Local shows a lot of sites, nearby or overlapping points can be clustered to keep the map readable. Clustering makes dense datasets easier to interpret and helps you spot where several sites share the same address.

What does clustering do?

When clustering is on, sites that are close together are grouped into a single green bubble showing how many sites it contains. This reduces clutter and gives a quick sense of local density.

You can turn clustering on or off on the Subsets map, the Scenarios maps (All local markets and Selected local market) and the Divestments map.

How to cluster or un-cluster sites

Use the clustering button in the map's left-hand toolbar:

  • Cluster markers - groups nearby sites into clusters.

Subsets map showing every site as its own marker, with the Cluster markers button highlighted
  • Show all markers (✕) - switches back to showing every site individually.

The same map with nearby sites grouped into numbered clusters, and the Show all markers button highlighted

With clustering on, click a cluster, use the zoom buttons or scroll to zoom in. Clusters gradually split into smaller clusters and individual sites as you zoom in.

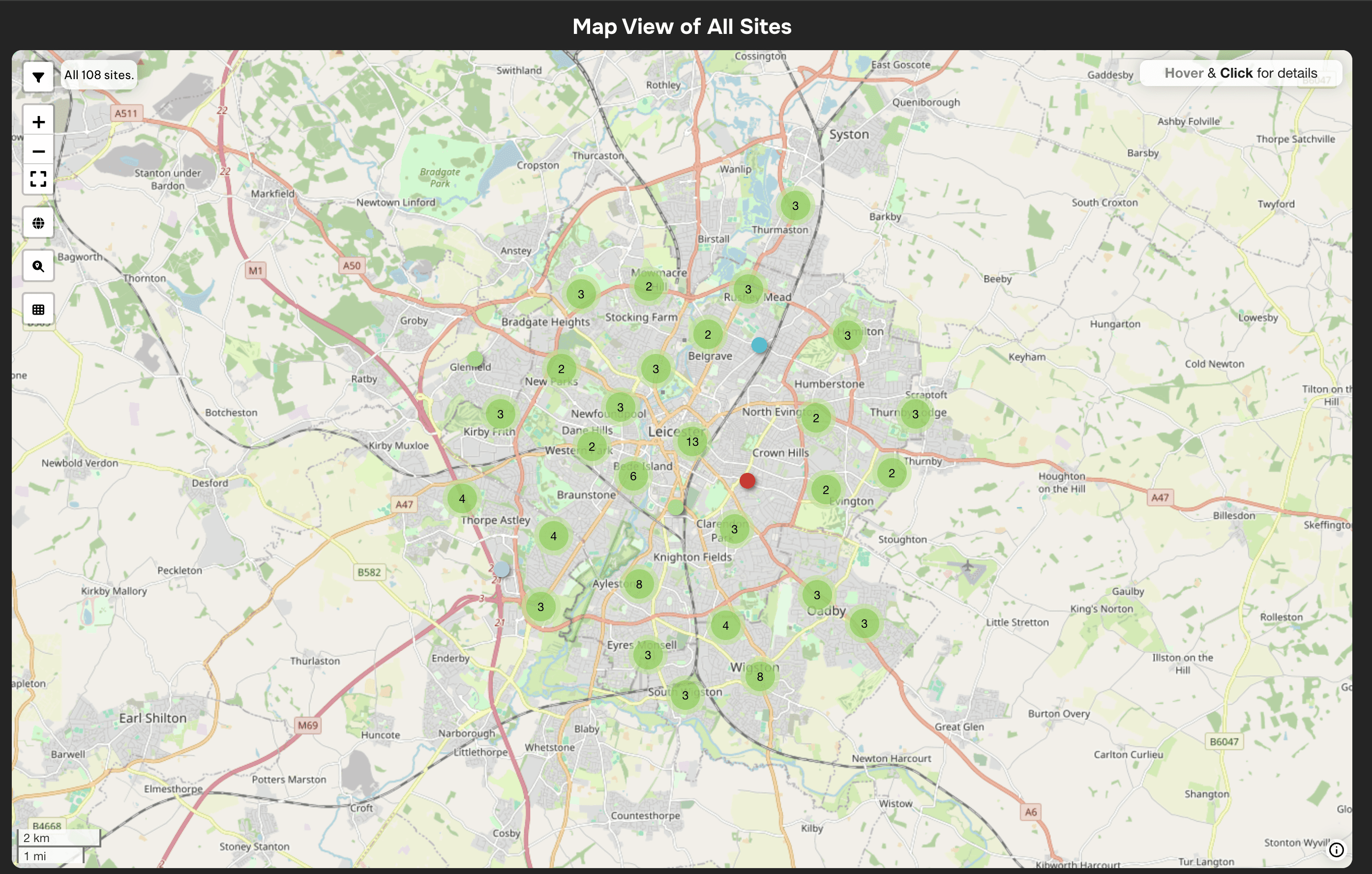

After clicking a cluster, the map zooms in and the cluster splits into smaller clusters and individual sites
When is clustering on automatically?

Each map turns clustering on by default once it shows a certain number of points:

Map

Clustered by default from

Subsets

1,000 sites

Scenarios - All local markets

500 markets

Scenarios - Selected local market

500 markers

Divestments

100 markers

Below these numbers, sites are shown individually and you can cluster them with the button.

Performance tip for large datasets

Showing thousands of individual markers at once can slow the app down. So when a map has 2,500 or more markers, clustering stays on and can't be switched off. Zoom in to see individual sites, or narrow down what's shown (for example with filters or a smaller subset).
